Slide rails
01

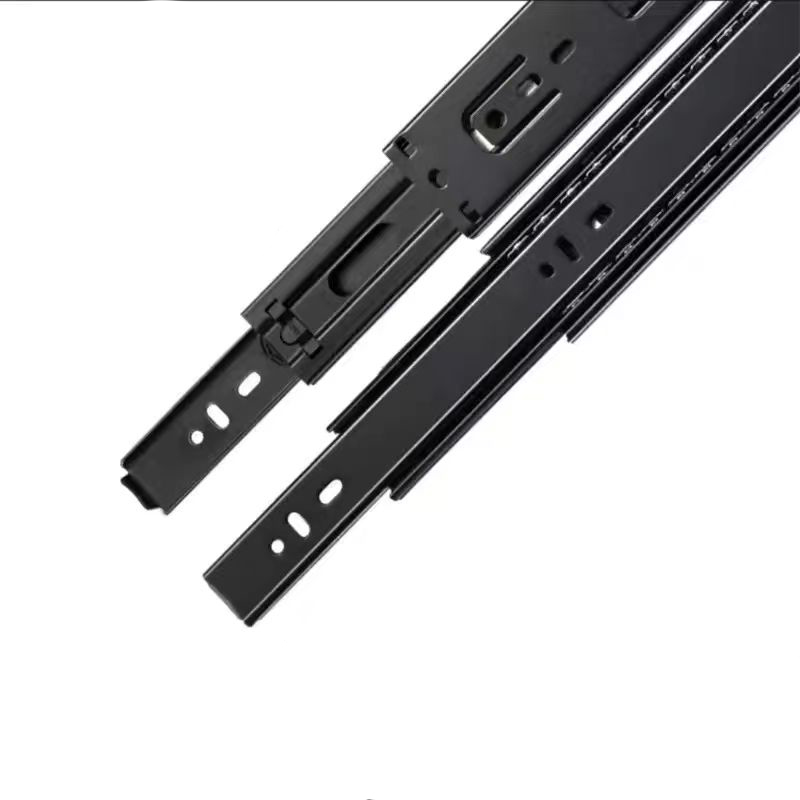

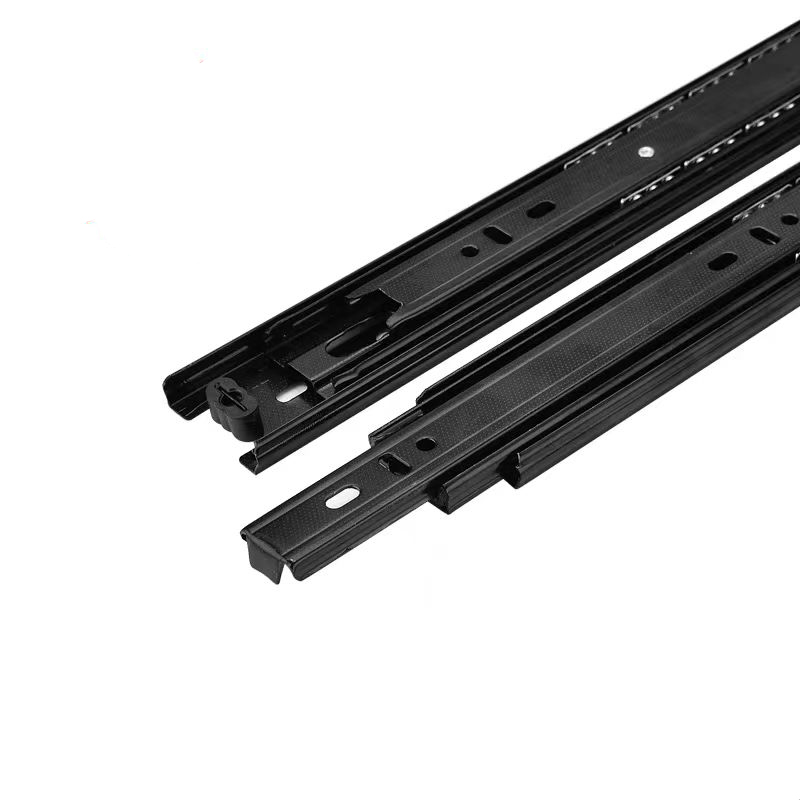

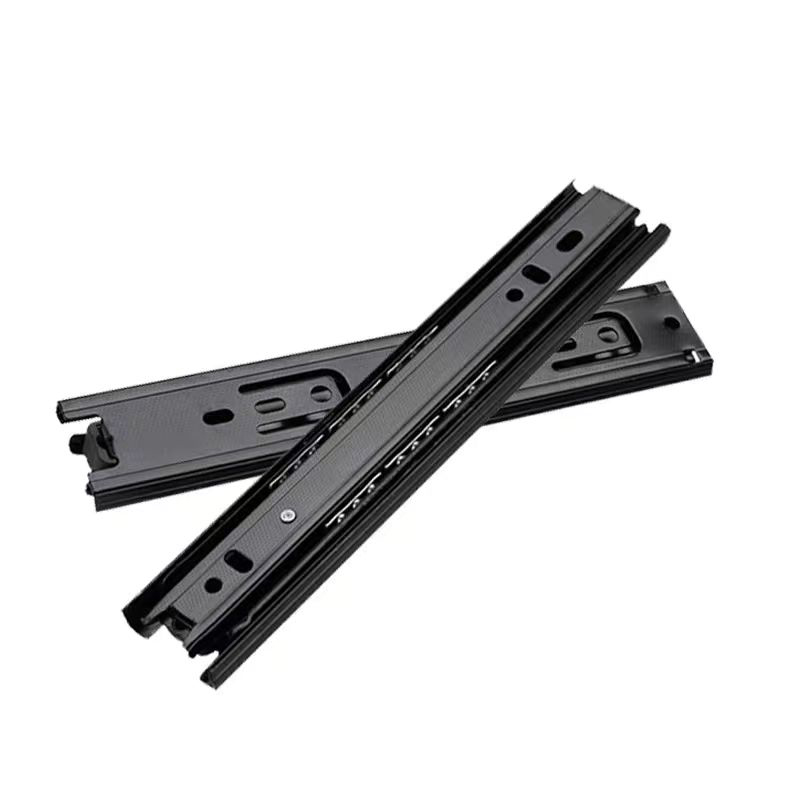

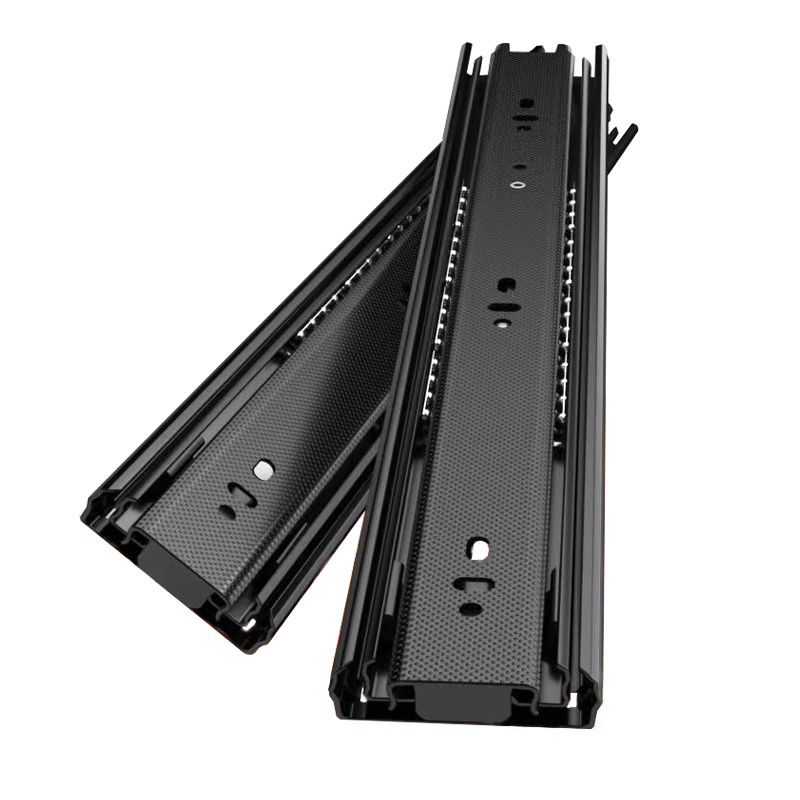

4510 Black Iron Silent Slide Rail
Product Core Information
The 4510 Black Steel Slide Rail (Model: 4510B) offers cost-effective reliability with 1mm electro-galvanized steel and a scratch-resistant matte coating. Designed for residential and office furniture, its dual-ball track system ensures smooth 35kg load movement at <30dB noise levels. The 45mm width prevents lateral wobble in standard 10-28" drawers, while the pre-greased bearings require zero maintenance for 5,000+ cycles.
Product Introduction
Perfect for budget-conscious manufacturers, this rail features resists fingerprints and minor abrasions. The ball arrangement reduces friction by 40% vs. entry-level rails, making it ideal for bedroom dressers or retail display units. Compatible with soft-close dampers (sold separately), it delivers premium functionality for mid-range pricing.
Key Features
Aesthetic Versatility: Neutral black finish blends with modern/industrial interiors.
Easy Installation: Laser-etched alignment marks enable 3-minute DIY upgrades.
Moisture Defense: Withstands 70% RH environments – ideal for climate-controlled spaces.
Technical Parameters
|
Category |
Specification |
|
Base Material |
Steel |
|
Coating Thickness |
25μm (±3μm) |
|
Load Capacity |
35kg static / 30kg dynamic |
|
UV Resistance |
ΔE<1.5 after 1,000h testing |
FAQ
Q: Child-safe for nursery furniture?
A: Yes – compatible with third-party child-lock systems (mounting slots included).
Q: Recyclability?
A: 98% steel content – fully recyclable per global metal recycling protocols.
Q: Lead time for US orders?
A: Standard sizes ship in 12-15 days with various Incoterms support.
