Slide rails
01

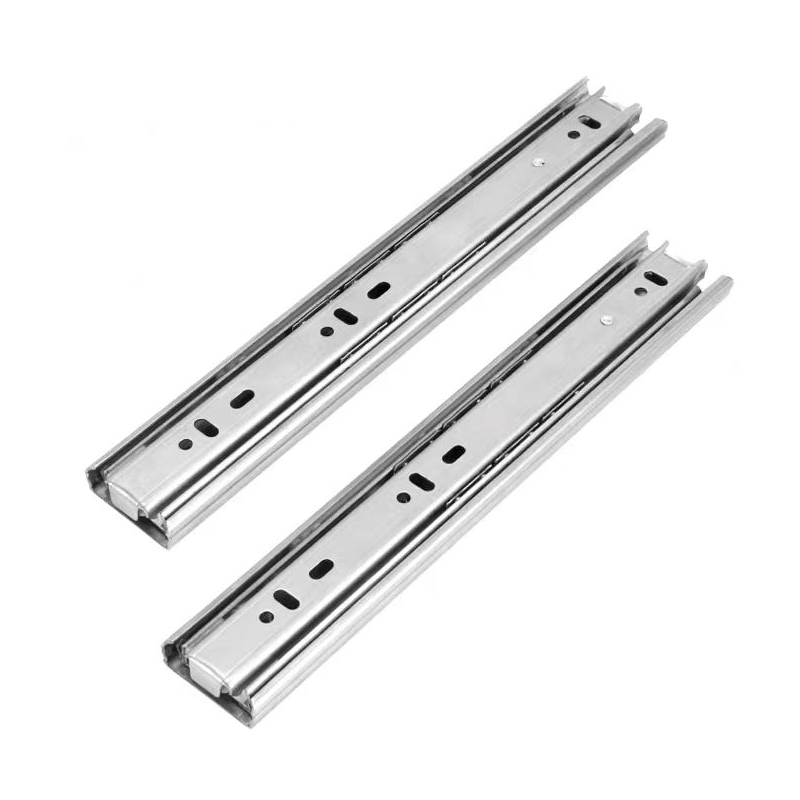

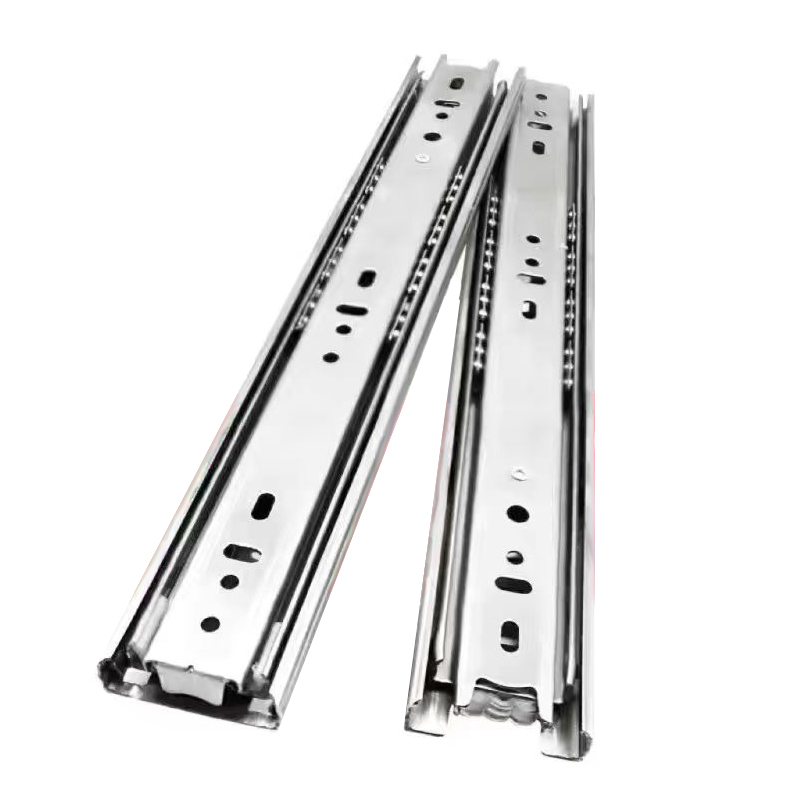

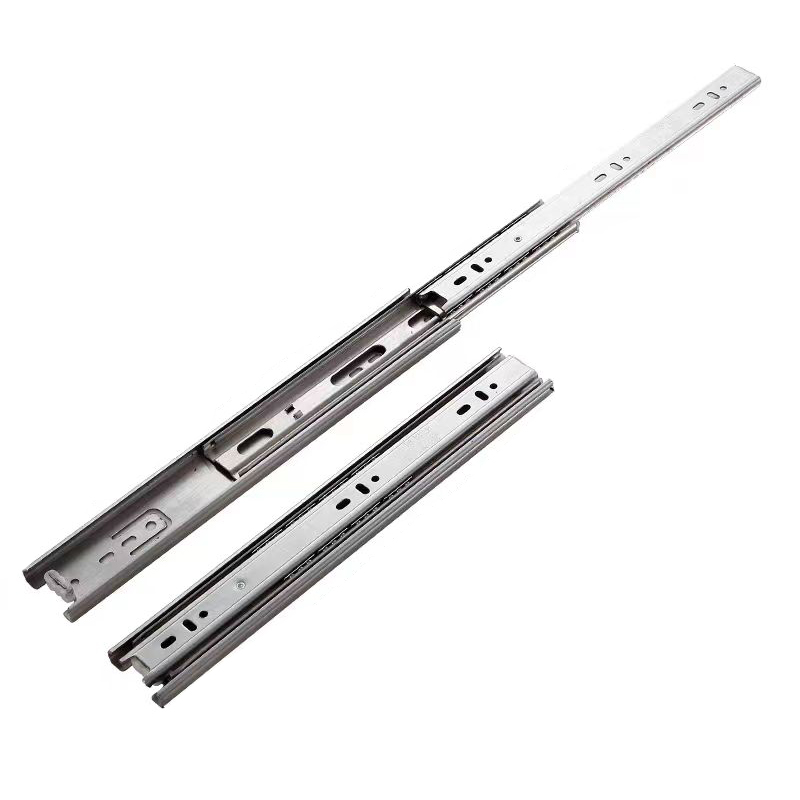

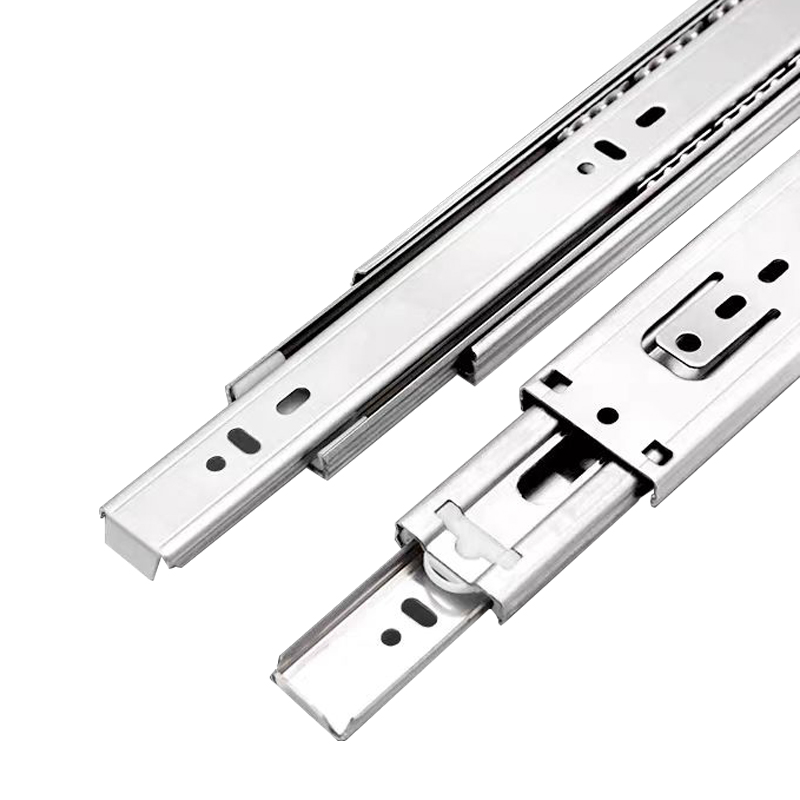

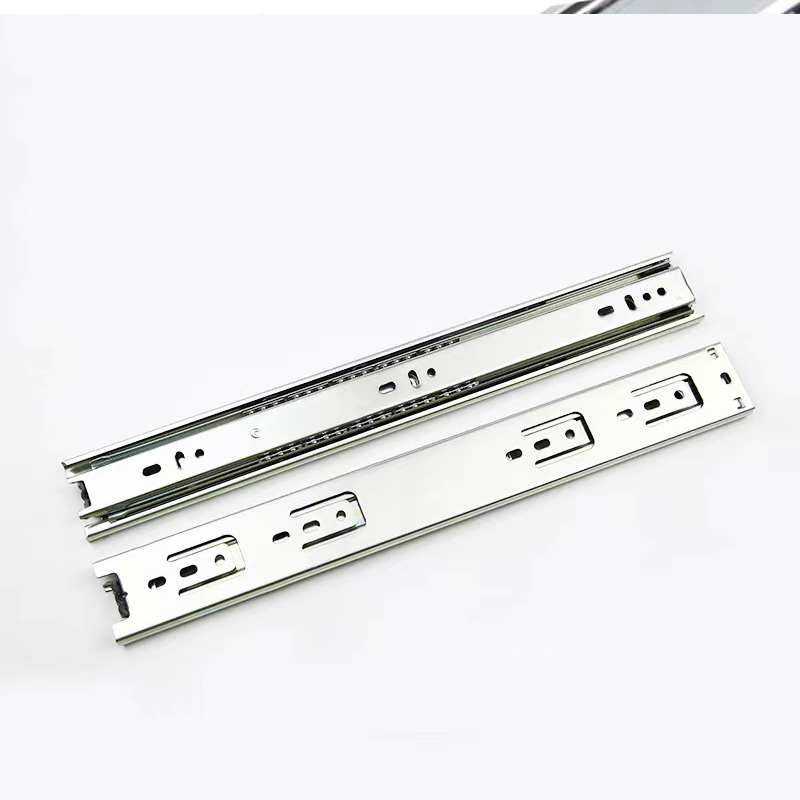

4510 Stainless Steel Silent Slide Rail
Product Core Information
The 4510 Silent Slide Rail (Model: 4510) delivers ultra-quiet drawer operation through its dual-row steel ball bearing system, engineered to eliminate friction noise. Made from 1mm-thick stainless steel material (base metal thickness), this 45mm-wide slide rail supports 35kg loads across cabinets, wardrobes, and office drawers. Its three-stage telescopic design ensures smooth extension up to 28", combining industrial-grade durability with residential-friendly quietness.
Product Introduction
Designed for seamless upgrades to existing furniture systems, the 4510 slide rail features a precision ball track that operates without lubrication. The dual-row bearing configuration distributes weight evenly across two parallel tracks, reducing wear while maintaining <30dB noise levels. Compatible with 10-28" drawer depths, its 45mm width provides enhanced lateral stability compared to narrow 35mm competitors. The 1mm material thickness ensures long-term structural integrity without adding bulk, ideal for modern slim-profile cabinet designs.
Key Features
SilentGlide System: Dual-row steel bearings minimize metal contact points for 90% noise reduction vs. single-track rails.
Heavy-Duty Build: 1mm stainless steel base material withstands 35kg static loads (24kg dynamic).
Space-Efficient Design: 45mm width optimizes drawer space while preventing side-to-side wobbling.
Universal Compatibility: Pre-drilled holes align with EU/NA cabinet standards (Blum, Hettich, Kesseböhmer).
Technical Parameters
|
Category |
Specification |
|
Model |
4510 |
|
Material |
Stainless steel |
|
Material Thickness |
1mm (base metal) |
|
Structure |
3-stage telescopic with dual bearings |
|
Width |
45mm (±0.3mm tolerance) |
|
Load Capacity |
40kg static / 35kg dynamic |
|
Adjustable Length |
10" to 28" (254-711mm) |
|
Noise Level |
<30dB (tested at 20°C/68°F) |
FAQ
Q: How does the dual-row design improve performance?
A: Two parallel bearing tracks reduce pressure per ball by 50%, extending lifespan while maintaining quiet operation.
Q: Will this fit my existing 12" kitchen drawers?
A: Yes – length adjusts in 1" increments from 10" to 28" using slide-lock mechanism.
Q: Is professional installation required?
A: No – pre-aligned screw holes allow DIY installation in <5 minutes with standard Phillips-head screws.
Q: Can it handle frequent use in office environments?
A: Rigorously tested for 50+ daily cycles (open/close) over 3-year simulated use.
