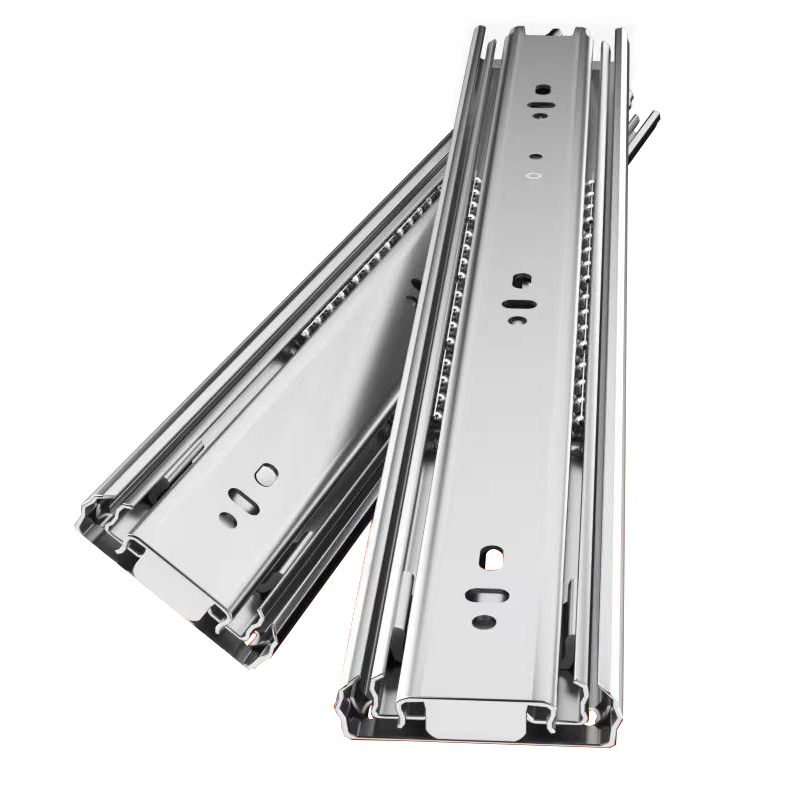

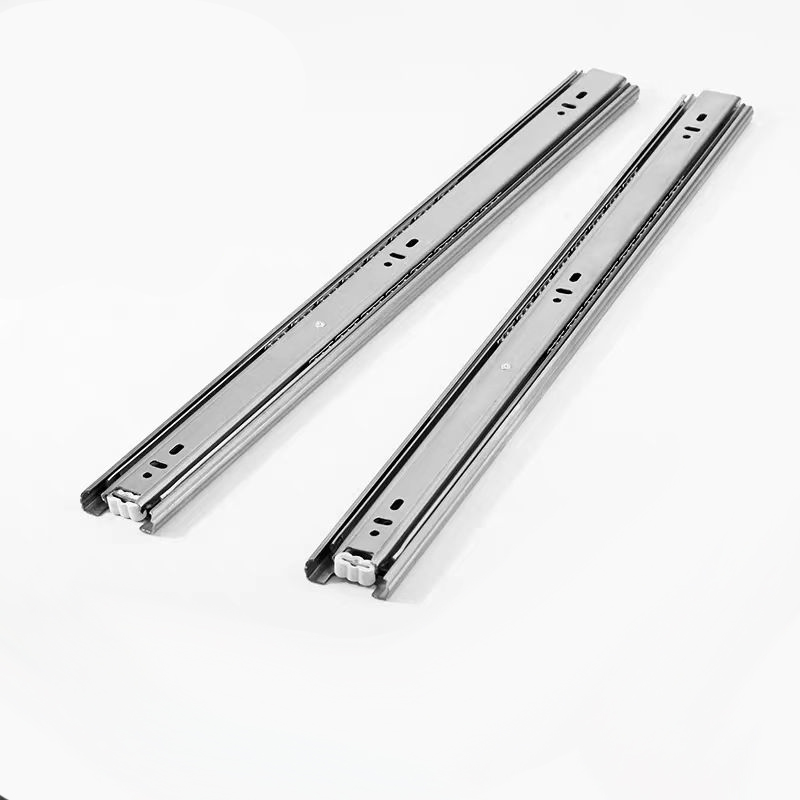

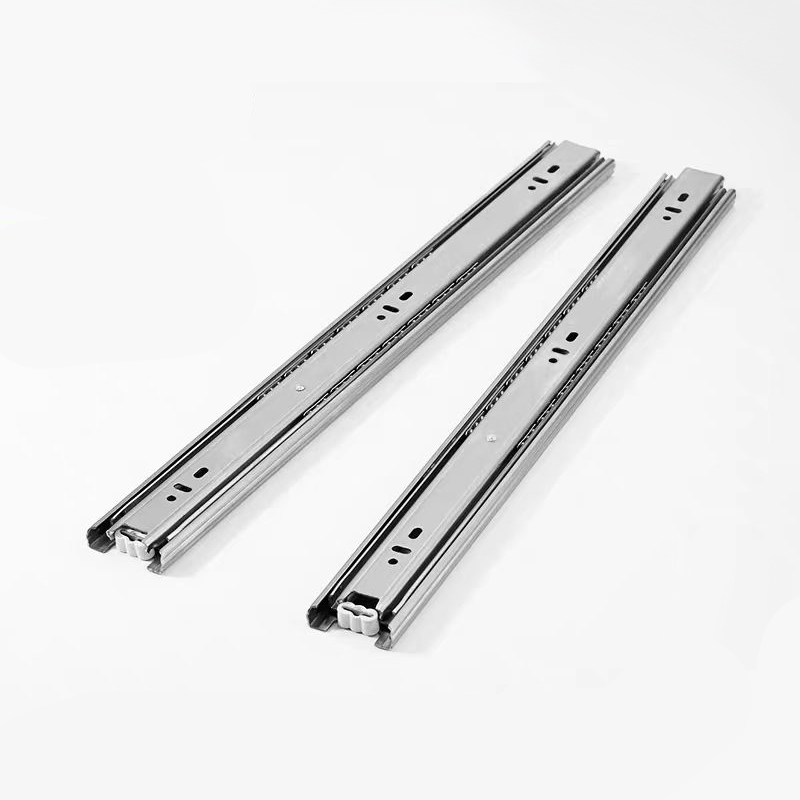

4512 Stainless Steel Silent Drawer Slides
Product Core Information
The 4512 Stainless Slide Rail (Model: 4512) redefines industrial performance with its dual-row precision ball bearing system, delivering library-quiet operation (<30dB) under 40kg static loads. Constructed from 1.2mm-thick 201 stainless steel base material, this rail excels in high-humidity environments like commercial kitchens and marine cabins. The corrosion-resistant surface withstands daily exposure to detergents and steam.
Product Introduction
Engineered for demanding professional applications, the 4512 model combines ultra-low friction mechanics . The staggered ball bearing layout reduces wear points by 60% compared to single-track designs, ensuring a 15,000-cycle lifespan even under 30kg dynamic loads. Pre-installed shock absorbers cushion sudden closures, making it ideal for hospital instrument carts or restaurant equipment drawers. At 60g/inch, it balances strength with logistics efficiency – 18% lighter than traditional industrial rails.
Key Features
Humidity Resistance: Survives 500+ hours salt spray testing without oxidation.
Quick-Release Mechanism: Detach drawers instantly via ergonomic lever for maintenance-free cleaning.
Temperature Resilience: Stable performance from -30°C to 150°C (-22°F to 302°F).
Universal Compatibility: Pre-drilled holes match EU/NA cabinet systems (e.g., Häfele, Grass).
Technical Parameters
|
Category |
Specification |
|
Base Material |
Stainless Steel |
|
Material Thickness |
1.2mm (±0.05mm tolerance) |
|
Load Capacity |
40kg static / 35kg dynamic |
|
Noise Level |
30dB |
|
Operational Cycles |
15,000+ |
FAQ
Q: How does the dual-row bearing system reduce noise?
A: Two parallel tracks distribute pressure across 50% more contact points, eliminating metal scraping sounds.
Q: Suitable for coastal areas with salty air?
A: Yes – 201 stainless steel resists chloride-induced corrosion, proven in Mediterranean yacht galley tests.
Q: MOQ for custom hole patterns?
A: 800 units minimum with technical drawings.
